What is a watertight bulkhead and when did China develop it?

A watertight bulkhead is a solid transverse partition dividing a ship's hull into sealed compartments. If the hull is breached, flooding is contained to a single compartment while the rest of the ship remains buoyant. The system is documented in Chinese shipbuilding texts from the 2nd century CE. Marco Polo described it in 1298. European shipbuilders did not independently develop the watertight bulkhead until the 18th century.

How is the Chinese junk hull different from a European sailing ship hull?

The key differences are: the junk has a flat bottom with no keel (vs a keeled, round-bottomed European hull), watertight bulkhead compartments (vs a single open hold with rib-and-plank framing), and a high stern with a stern rudder (vs a lower stern with a tiller-connected rudder). The junk's design prioritised shallow-water versatility and cargo capacity; the European hull prioritised deep-water sailing performance.

How can I identify a Chinese junk hull design in a ship model?

Look for: a flat bottom with no keel projection below the hull line, a high stern noticeably elevated above the bow, a broad beam relative to the vessel's length, a large rudder hanging from the sternpost, and painted eyes on either side of the bow. These features together are distinctive to the Chinese junk tradition and distinguish it from European vessel types.

No Keel, No Problem: How the Chinese Junk's Hull Design Was Centuries Ahead of the West

Q: Why does the Chinese junk have no keel?

The absence of a keel is a deliberate design choice, not a limitation. The Chinese junk was designed primarily for the coastal waters and river deltas of southern China, where shallow draft is more valuable than deep-water performance. A flat-bottomed hull can sit upright when grounded on tidal flats, navigate shallow river ports inaccessible to deep-keeled vessels, and be built without the complex curved framing a round-bottomed hull requires.

Q: How did the watertight bulkhead help Chinese merchant ships?

The bulkheads served two purposes: safety (containing flooding to a single compartment if the hull was breached) and cargo management (different compartments could carry different goods, allowing a single vessel to serve multiple merchants with each shipper's cargo secured in a separate, lockable section). This modular cargo system was effectively a containerisation method six centuries before the modern shipping container.

Q: What is the stern rudder on a Chinese junk?

The Chinese stern rudder is a large steering surface hung from the sternpost and extending below the hull. It was in use in China by the 1st century CE — several centuries before it appeared in European shipbuilding. It could be raised or lowered to adjust its depth depending on water conditions, making it particularly useful in the shallow coastal waters where junks often operated.

May 25, 2026

No Keel, No Problem: How the Chinese Junk's Hull Design Was Centuries Ahead of the West

Quick Answer

The Chinese junk's hull has three defining features: a flat bottom (no keel), watertight bulkhead compartments dividing the interior into sealed sections, and a high stern with a large rudder. The flat bottom was a deliberate design choice for navigating shallow coastal waters and river deltas. The watertight bulkhead — documented in Chinese texts from the 2nd century CE — allowed the hull to survive a breach without sinking. European shipbuilders did not independently develop this system until the 18th century.

Key Facts

The watertight bulkhead system is documented in Chinese shipbuilding texts from the 2nd century CE — Marco Polo described it in 1298, noting ships with "thirteen bulkheads made of stout planks."
European shipbuilders did not independently develop the watertight bulkhead until the 18th century — roughly 1,600 years after its documented use in China.
The flat-bottomed hull allowed junks to sit upright when grounded on tidal flats, navigate shallow river deltas, and be built without the complex curved framing a round-bottomed hull requires.
The bulkheads served a dual purpose: structural safety (containing flooding) and cargo management (separating different goods in different compartments).
Zheng He's treasure ships — reportedly up to 137 meters long — used the bulkhead system to achieve a scale that Western shipbuilding methods could not match in wood.

TL;DR

The Chinese junk's hull design was not primitive — it was a sophisticated engineering solution to specific navigational and commercial requirements.
The flat bottom, watertight bulkheads, and high stern each solved a specific problem that the keeled, rib-and-plank European hull did not address as effectively.
The bulkhead system in particular was a genuine technological advance that took the Western world over a millennium to independently develop.
Understanding the hull design helps explain why the junk dominated Asian waters for so long — and why it remains one of the most studied vessel types in maritime history.

The Chinese junk is often described as having no keel, as if this were a limitation. It is not. The absence of a keel is a design choice — one that reflects a different set of priorities from the European keeled hull, and one that produced a vessel better suited to the specific conditions of Chinese coastal and river navigation. Understanding why the junk was designed the way it was requires understanding the waters it was designed to sail.

🛵 The Flat-Bottomed Hull: Why No Keel?

A keel — the longitudinal structural member running along the bottom of a hull — provides lateral resistance that prevents a sailing vessel from being pushed sideways by the wind. It is essential for a vessel that needs to sail close to the wind in open ocean. But it also creates a deep draft that makes the vessel unsuitable for shallow waters, and it requires complex curved framing to build.

The Chinese junk was designed primarily for the coastal waters and river deltas of southern China — environments where shallow draft is more valuable than deep-water performance. A flat-bottomed hull can sit upright when grounded on a tidal flat, navigate the shallow approaches to river ports inaccessible to deep-keeled vessels, and be built without the complex curved framing that a round-bottomed hull requires. Ocean-going variants added a slight V-shape to the forward sections for wave-cutting ability while retaining the flat run aft for stability and cargo capacity. The result was a hull that performed well across a wider range of conditions than a purely keeled design.

🛡️ The Watertight Bulkhead: The Innovation That Changed Shipbuilding

The watertight bulkhead is the most consequential structural innovation in the Chinese junk's design. By dividing the hull into sealed transverse compartments with solid wooden partitions, Chinese shipwrights created a vessel that could survive a hull breach without sinking — the flooding would be contained to a single compartment while the rest of the ship remained buoyant. This is the same principle used in modern ship design, where watertight compartments are a standard safety requirement.

The system is documented in Chinese shipbuilding texts from the 2nd century CE. Marco Polo described it in 1298 after sailing on Chinese vessels: "The larger ships have thirteen bulkheads made of stout planks, fitted together with great care." European shipbuilders did not independently develop the watertight bulkhead until the 18th century — roughly 1,600 years after its documented use in China. The bulkheads also served a commercial purpose: different compartments could carry different cargoes, allowing a single vessel to serve multiple merchants simultaneously with each shipper's goods secured in a separate, lockable section. For a deeper look at this innovation, see our article on the ancient Chinese invention that changed shipbuilding forever.

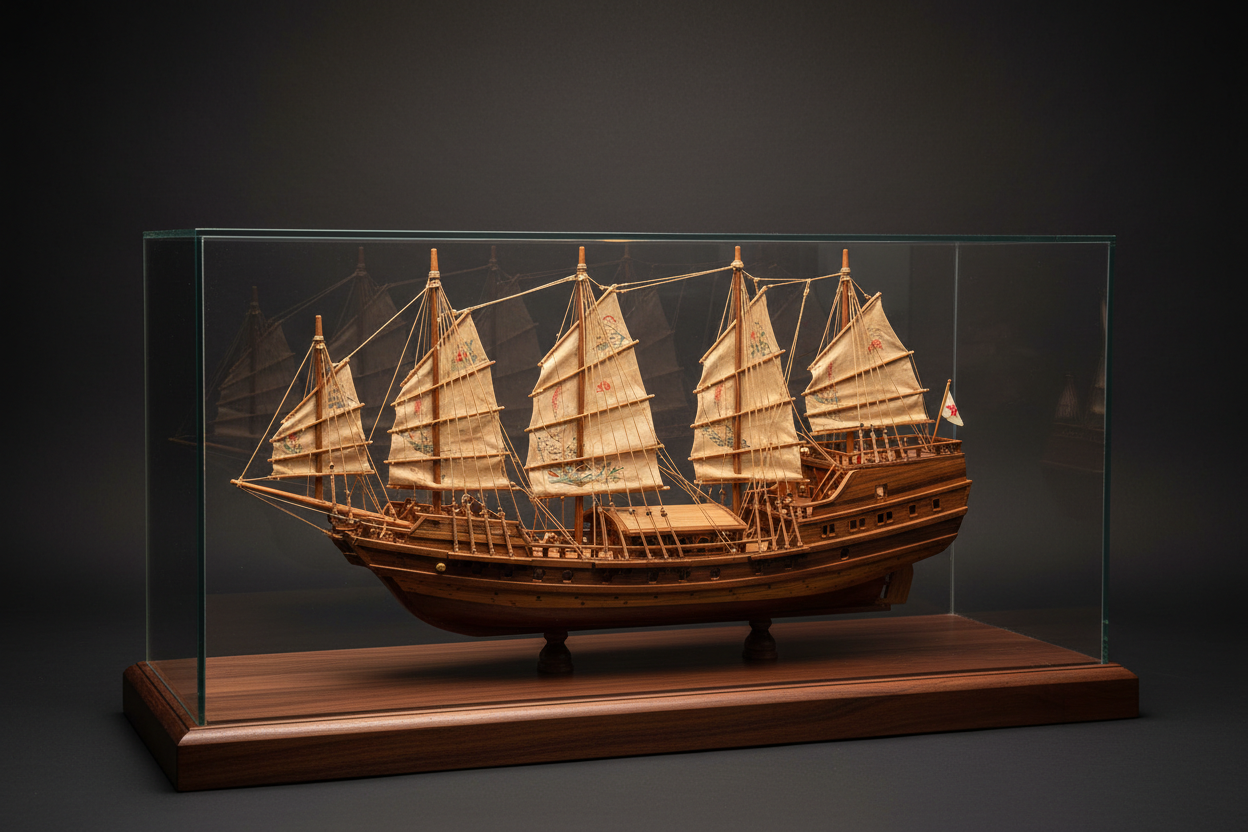

Handcrafted Chinese Junk Ship Model — Ocean-Going Sailing Junk — The broad hull and high stern of the ocean-going junk, built on the flat-bottomed, bulkhead-compartmented design that made it the dominant vessel of Asian waters for over a millennium.

📍 The High Stern and Stern Rudder

The junk's high stern — significantly elevated above the waterline — served several purposes. It provided a commanding position for the helmsman, gave shelter to the crew in heavy weather, and created space for the large stern cabin that was standard on trading and pleasure vessels. The stern rudder, hung from the sternpost and extending below the hull, provided steering control that was more effective than the side-mounted steering oars used on many contemporary vessel types.

The Chinese stern rudder was in use by the 1st century CE — several centuries before it appeared in European shipbuilding. It could be raised or lowered to adjust its depth depending on the water depth, a feature particularly useful in the shallow coastal waters where junks often operated. The combination of flat bottom, watertight bulkheads, and effective stern rudder gave the junk a set of capabilities that no single European vessel type of the same era could match across the same range of conditions.

🔍 How to Identify It: Hull Design in a Ship Model

Flat bottom: No keel projection below the hull line. The bottom of the hull is flat or only slightly curved when viewed from the bow or stern.
High stern: The stern is noticeably higher than the bow, with a large rudder visible hanging from the sternpost.
Broad beam: The junk's width-to-length ratio is typically broader than a European vessel of similar length — a consequence of the flat-bottomed, cargo-optimised design.
Painted bow eyes: Traditional junks carry painted eyes on either side of the bow — a practice dating to the Han dynasty.
