Why do Chinese junk boats have battened sails?

Chinese junk sails use horizontal battens — rods running across the full width of each sail panel — that allow the sail to be reefed (reduced in area) from the deck without sending crew aloft. Each batten holds its section of sail flat when lowered, giving the crew complete control in heavy weather without dangerous work aloft. The batten sail also maintains a consistent aerofoil shape that allows the junk to sail closer to the wind than a square-rigged vessel.

How old is the Chinese batten sail?

The batten sail is documented in Chinese maritime records from the 2nd century CE — over 1,800 years of continuous use. It appears in Tang dynasty paintings, Song dynasty shipbuilding manuals, and the accounts of foreign travellers including Marco Polo (1298) and Ibn Battuta (14th century), both of whom described the distinctive adjustable sails of Chinese vessels.

What is the difference between a batten sail and a square sail?

A square sail is a flexible sheet of canvas suspended from a horizontal yard, taking its shape from wind pressure. It is efficient when sailing downwind but less effective when sailing close to the wind. A batten sail uses horizontal rods to stiffen each panel, maintaining a consistent aerofoil shape at a wider range of wind angles. It can also be reefed from the deck without crew going aloft, which a square sail cannot.

How can I identify a batten sail on a Chinese junk ship model?

Look for horizontal rods running across each sail panel at regular intervals — these are the battens. The sails may be made from woven matting, canvas, or fabric. On a handcrafted model, the battens will be individually fitted and the sail material will have natural texture. On a factory model, the sails may be moulded or printed rather than made from actual fabric.

Why was the batten sail more advanced than European sails of the same era?

The batten sail offered two advantages that European square rigs lacked: the ability to reef from the deck without crew going aloft (a significant safety advantage in heavy weather), and the ability to sail at a wider range of angles to the wind (allowing more flexible routing on variable monsoon trade routes). European sailors did not develop comparable short-handed reefing systems until the 19th century.

The Junk Sail: Why China's Batten Rig Was the Most Advanced Sailing Technology of Its Age

Q: Do modern yachts use the same sail design as Chinese junks?

Yes. The fully battened mainsail used on many modern racing and cruising yachts uses the same principle as the Chinese batten sail: full-length battens that hold the sail in a consistent aerofoil shape and allow controlled reefing. Several round-the-world race designs have used junk-rig variants specifically for their short-handed handling advantages.

May 25, 2026

The Junk Sail: Why China's Batten Rig Was the Most Advanced Sailing Technology of Its Age

Quick Answer

The Chinese junk sail uses horizontal battens — rods running across the full width of the sail — that stiffen each panel and allow the sail to be reefed (reduced in area) from the deck without sending crew aloft. This made the junk easier to handle short-handed and allowed precise sail shape adjustment in changing wind conditions. The batten sail was in use in China by the 2nd century CE and remains one of the most efficient sail designs ever developed — modern offshore racing yachts use a version of it today.

Key Facts

The batten sail is documented in Chinese maritime records from the 2nd century CE — over 1,800 years of continuous use.
Battens allow the sail to be reefed from the deck by lowering it in sections, with each batten holding its portion flat and controlled — no crew needed aloft in heavy weather.
The batten sail can be set at a wider range of angles to the wind than a square sail, allowing the junk to sail closer to the wind than square-rigged European vessels of the same era.
Modern offshore racing yachts, including many round-the-world race competitors, use batten sail systems derived from the same principle.
In a ship model, the battened sails are one of the most visually distinctive features of the Chinese junk — the horizontal rods are visible across each sail panel.

TL;DR

The Chinese batten sail is one of the most efficient sail designs in maritime history — in use for over 1,800 years and still influencing modern yacht design.
Its key advantage is the ability to reef from the deck: each batten holds its section of sail flat when lowered, giving the crew complete control without going aloft.
The sail can be set at a wider range of angles to the wind than a square sail, making the junk more versatile in variable wind conditions.
In a ship model, the battened sails are the most visually distinctive feature of the Chinese junk — the horizontal rods across each sail panel are immediately recognisable.

The sail is the most visible part of any sailing vessel, and on a Chinese junk it is immediately distinctive: panels of woven matting or canvas stiffened by horizontal rods (battens) that run the full width of the sail at regular intervals. This is not a primitive design — it is a sophisticated engineering solution to the problem of controlling a large sail area with a small crew in variable wind conditions. The batten sail was in use in China centuries before European sailors encountered it, and its principles are still being applied in the most advanced sailing vessels built today.

🌊 How the Batten Sail Works

A conventional sail — whether square or fore-and-aft — is a flexible sheet of canvas that takes its shape from the wind pressure acting on it and the tension applied by the sheets and halyards. When the wind drops or shifts, the sail collapses or flogs. To reef a conventional sail in heavy weather, crew must go aloft to the yards (on a square-rigged vessel) or work at the mast and boom (on a fore-and-aft rig) — dangerous work in rough conditions.

The batten sail works differently. Each horizontal batten divides the sail into panels, and each panel is independently supported by its batten. When the sail is lowered to reef it, each panel folds neatly onto the one below, with the battens keeping each section flat and controlled. The entire operation can be done from the deck by a single crew member, without anyone going aloft. In heavy weather, this is a significant safety advantage. It also means the sail can be set at any intermediate position between fully raised and fully lowered, giving the crew precise control over sail area.

🧭 Wind Performance: Closer to the Wind

The batten sail can be trimmed — adjusted in angle to the wind — with greater precision than a square sail. Because each batten holds its panel rigid, the sail maintains a consistent aerofoil shape across its full area, generating lift more efficiently than a flexible canvas sail that distorts under load. This allows the junk to sail closer to the wind than a square-rigged vessel of comparable size — an important advantage on the monsoon trade routes of the Indian Ocean and South China Sea, where the wind direction changes seasonally and the ability to sail at a range of angles is commercially valuable.

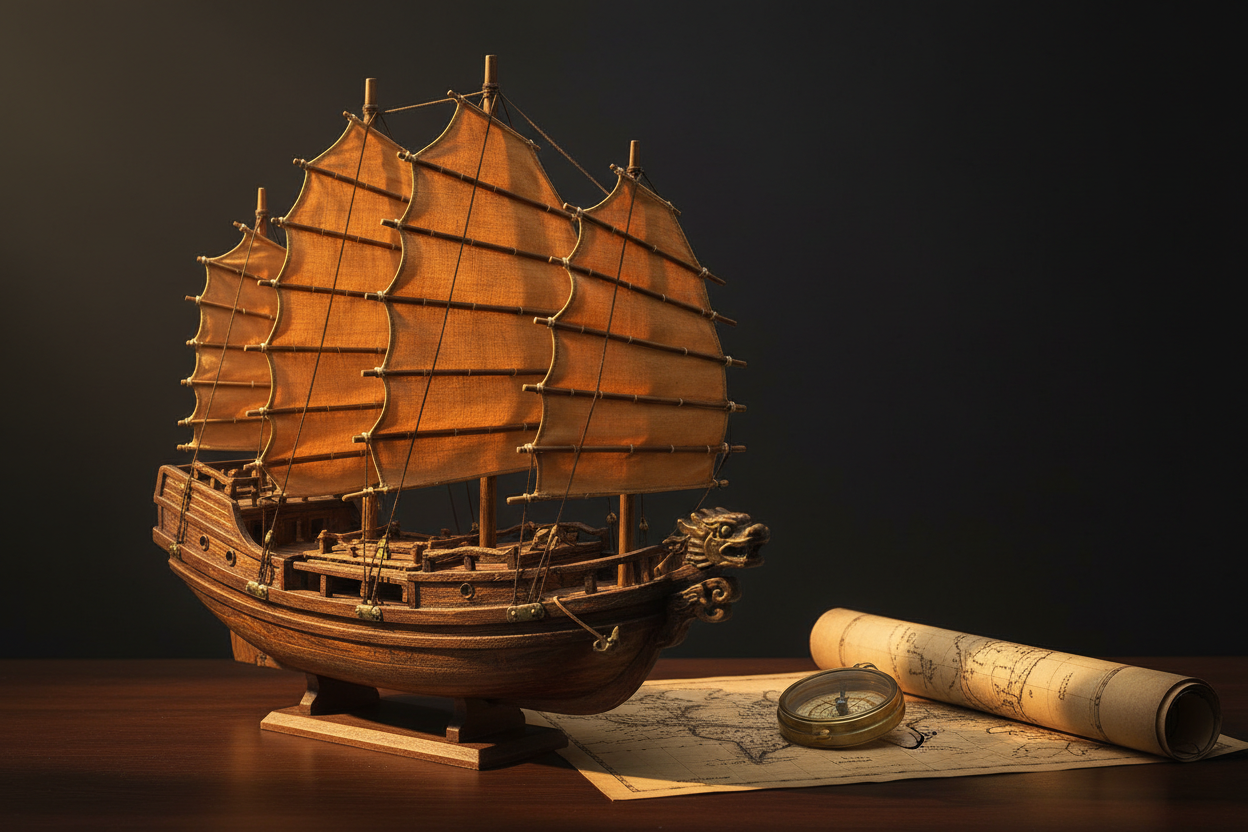

Handcrafted Chinese Wooden Ship Model — Traditional Sailing Junk — The battened sails are the most visually distinctive feature of the Chinese junk: horizontal rods visible across each sail panel, replicating the functional rigging of the original vessel.

📅 History: 1,800 Years of Continuous Use

The batten sail is documented in Chinese maritime records from the 2nd century CE. It appears in Tang dynasty (618–907 CE) paintings of river vessels, in Song dynasty (960–1279 CE) shipbuilding manuals, and in the accounts of foreign travellers who encountered Chinese vessels on the Indian Ocean trade routes. Marco Polo, writing around 1298, described the sails of Chinese ships in terms that clearly indicate the batten rig. Ibn Battuta, the 14th-century Moroccan traveller, described Chinese vessels with sails that could be adjusted from the deck — a feature that astonished sailors accustomed to European rigging practice.

The batten sail's influence on modern yacht design is direct and documented. The "fully battened" mainsail used on many modern racing and cruising yachts uses the same principle: full-length battens that hold the sail in a consistent aerofoil shape and allow controlled reefing. Several round-the-world race designs have used junk-rig variants specifically for their short-handed handling advantages. The Chinese batten sail is not a historical curiosity — it is an active influence on contemporary sailing technology.

🔍 How to Identify It in a Ship Model

The battened sail is the most immediately recognisable feature of a Chinese junk model. Look for horizontal rods running across each sail panel at regular intervals — these are the battens. The sails may be made from woven matting, canvas, or fabric, and the battens may be bamboo, wood, or a synthetic substitute depending on the model's quality level. On a handcrafted model, the battens will be individually fitted and the sail material will have natural texture. On a factory model, the sails may be moulded or printed rather than made from actual fabric.
