5 Reasons the Chinese Junk Ship Was Centuries Ahead of Its Time

The Chinese junk is often discussed in terms of its visual distinctiveness — the battened sails, the high stern, the painted bow eyes. Less often discussed are the specific engineering features that the historical and archaeological record places in Chinese vessels centuries before their appearance in European shipbuilding. This article covers five of those features, with notes on the documentary evidence behind each.

🛡️ 1. Watertight Bulkhead Compartments

The junk hull was divided into separate sealed compartments by transverse bulkheads. A breach in one compartment would not necessarily flood the entire vessel. Joseph Needham's Science and Civilisation in China (Vol. 4, Part III, 1971) documents this feature in Chinese vessels from at least the 2nd century CE. European shipbuilders did not adopt the bulkhead system systematically until the 18th century — a gap of roughly 1,600 years in the documentary record.

⛵ 2. The Battened Sail

The junk's sails are reinforced with horizontal battens — typically bamboo — that run across the full width of the sail. This gives the sail structural rigidity without requiring the heavy standing rigging of European square-rigged vessels, and allows the sail to be reefed quickly by lowering it in sections. The batten rig is documented in Chinese sources from at least the 2nd century CE and is considered one of the more efficient pre-industrial sail systems for sailing close to the wind. Contemporary yacht designers have revisited the batten rig concept in high-performance and experimental cargo vessel applications.

⚓ 3. The Balanced Stern Rudder

Chinese junks used a balanced rudder — one in which the rudder blade extends both forward and aft of the pivot point — which reduces the force required to steer. It could also be raised or lowered depending on water depth. This design is documented in Chinese vessels from the Han period and predates its appearance in European shipbuilding by several centuries, according to Needham (1971). Some junk rudders also featured fenestration — holes in the blade — which reduced water resistance while maintaining steering control.

🧭 4. Hull Form Adapted to Operational Context

Ocean-going junks typically used a V-shaped hull for stability in open water; river and coastal junks used a flat-bottomed hull for shallow-water navigation. The two forms served different operational requirements and were not interchangeable. This range of hull forms — within a single vessel tradition — allowed the junk to function as river trader, coastal freighter, and ocean-going vessel depending on configuration, a versatility that European deep-keeled vessels of the same period did not share.

🎨 5. Cultural Symbolism as Functional Practice

Bow eyes — painted or carved eyes on the hull near the bow — are a documented feature of Chinese and Southeast Asian fishing vessels, understood within coastal communities as allowing the vessel to navigate safely. Hull ornamentation, onboard ritual objects, and pre-departure ceremonies are documented in historical accounts of Chinese maritime communities. Mazu (妈祖), the goddess of the sea, is venerated across coastal China, Taiwan, and Southeast Asia; her worship is listed by UNESCO as intangible cultural heritage (2009). These practices were embedded in the construction and operation of working vessels, not added as decoration after the fact.

🏛️ The Workshop Tradition

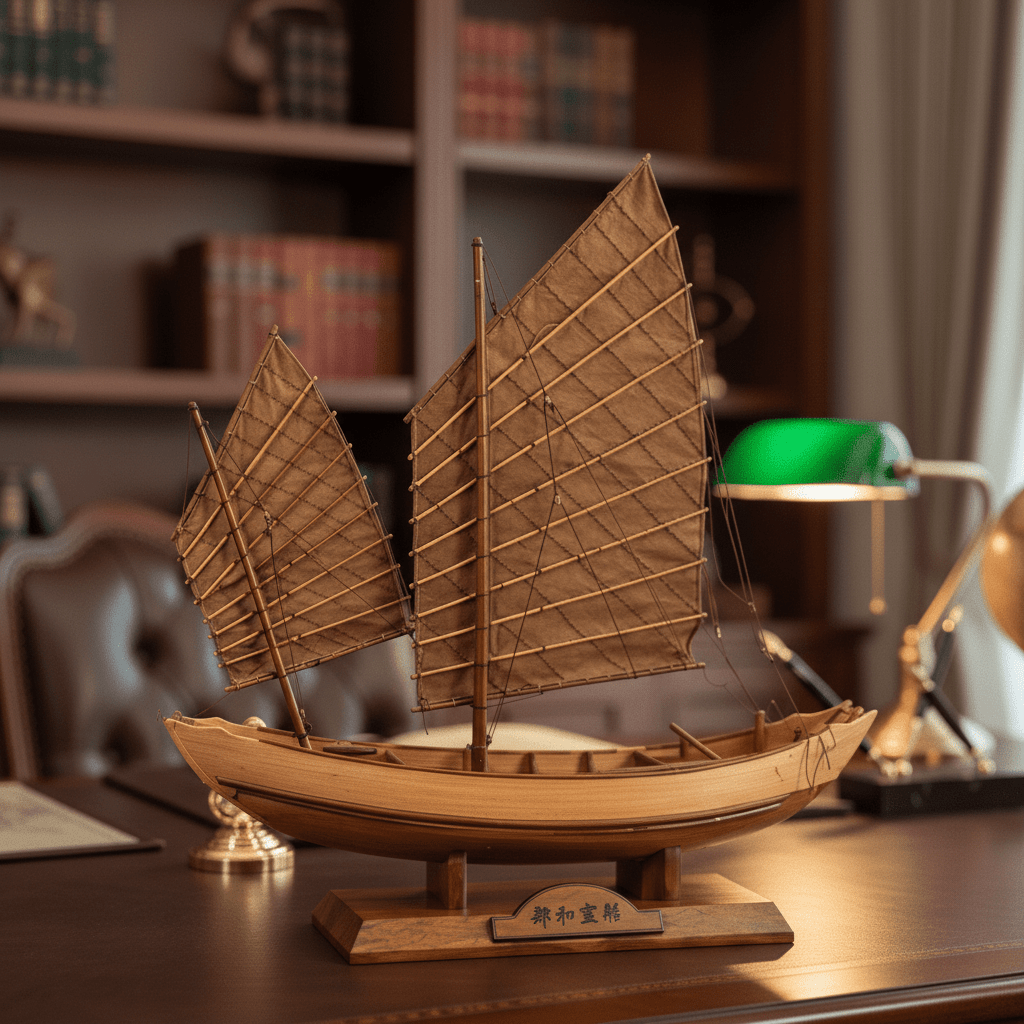

The Zhoushan Archipelago in Zhejiang Province has a documented tradition of wooden ship model production recognized as intangible cultural heritage by the Chinese government. Ocean Relic Studio's models are made in this workshop tradition, by craftsmen whose knowledge of hull form, rigging, and construction detail comes from the same coastal boatbuilding community that produced working vessels of these types. The five features described above — bulkhead construction, batten rig, balanced rudder, hull form variation, and cultural ornamentation — are all represented in the models produced in this tradition.
